Szczegóły Produktu:
Zapłata:
|
| Typ drzwi: | Z jednym drzwiami wejściowymi | Forma sprzedaży: | OEM/ODM |
|---|---|---|---|
| Obróbka powierzchniowa: | Malowanie proszkowe | Utrata wtrąceniowa: | ≤0,20 dB |
| Drzwi: | Z jednymi drzwiami przednimi i jednymi tylnymi | Nazwa produktu: | Szafka telekomunikacyjna na zewnątrz |
| Izolacja: | Pojedyncza ściana 20 mm PEF (grubość opcjonalna) | Tworzywo: | Stal walcowana na zimno |
| Ochrona: | pyłoszczelny, odporny na słońce i deszcz | Poziom ochrony: | IP55 |
| Rodzaj mocowania: | Montowany na ziemi | Wymiar: | szer. × gł. × wys. 900 × 900 × 2100 mm |
| Ciśnienie: | 62 kpa ~ 101 kpa | Układ szafki: | Jeden/dwa/trzy przedział |
| Chłodzenie: | Klimatyzator DC48V | ||
| Podkreślić: | outdoor telecom cabinet with double doors,floor standing telecom cabinet 19 inch rack,outdoor 19 inch rack telecom cabinet |
||
Product Description Outdoor Floor Standing Telecom Cabinet

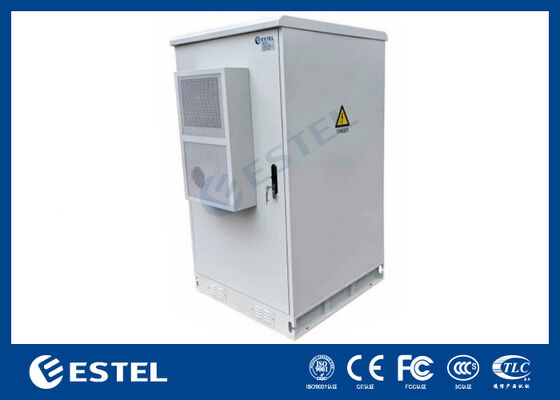

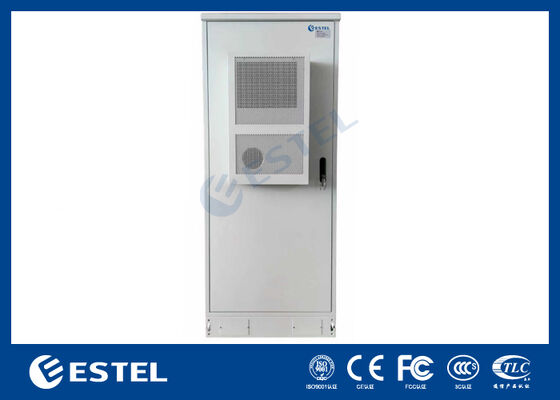

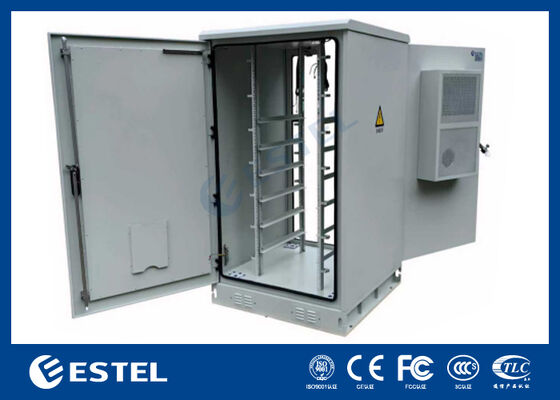

This outdoor floor-standing telecom cabinet is designed for communication sites, roadside network nodes, power support systems and other outdoor infrastructure applications that require protected equipment installation and thermal management. Based on the product images, the cabinet features a single full-height front door, a side-mounted cooling unit, a lockable access handle and an internal rack structure for organized equipment mounting. The enclosed metal body helps protect internal devices from the external environment, while the raised base supports floor installation and cable routing. The cabinet is suitable for housing telecom, power, transmission, monitoring or integrated control equipment in outdoor environments where secure access, internal organization and temperature control are essential.
Key Features for Outdoor Floor Standing Telecom Cabinet
• Outdoor floor-standing cabinet design for independent site deployment
• Single full-height front and rear door for easy equipment installation and maintenance
• A cooling unit for cabinet temperature control
• Internal rack structure for standardized equipment mounting
• Lockable handle for controlled access and better equipment security
• Raised bottom base for fixing, lifting and cable entry support
• Enclosed metal housing for outdoor equipment protection
• Suitable for telecom, power, transmission, monitoring and integrated outdoor applications
Technical Specifications for Outdoor Floor Standing Telecom Cabinet
| Item | Specification |
| Product Type | Outdoor Telecom Equipment Cabinet |
| Installation Type | Floor-standing outdoor installation |
| Cabinet Structure | Single-bay enclosed metal cabinet |
| Door Configuration | Single full-height front and rear door |
| Door Opening | Side-hinged outward-opening door |
| Locking Method | Front-mounted swing handle lock |
| Cooling Configuration | 1 mounted cabinet cooling unit |
| Cooling Unit Location | Mounted externally on the cabinet side panel |
| Internal Mounting Structure | Integrated vertical rack frame |
| Rack Type | Suitable for standard 19-inch equipment mounting |
| Internal Mounting Levels | Multiple mounting positions visible along rack rails |
| Base Structure | Raised plinth base for floor fixing and cable routing |
| Cabinet Material | Powder-coated sheet metal enclosure |
| Cabinet Color | Light grey |
| Warning Marking | High-voltage / danger warning sign on cabinet body |
| Service Access | Front and rear access through full-height door |
| Estimated Width | Approx. 700–800 mm |
| Estimated Depth | Approx. 700–900 mm |
| Estimated Height | Approx. 1400–1800 mm |
| Application | Outdoor telecom sites, communication nodes, monitoring systems, power support and integrated control equipment |
| Customization | Internal layout, cooling type and cabinet size can be customized according to project requirements |
Operating Guidelines
