Szczegóły Produktu:
Zapłata:
|
| Rozmiar: | 1750 mm x 800 mm x 1000 mm (wys.*szer.*gł.) | Tworzywo: | Blacha ocynkowana o grubości 1,2 mm, jednowarstwowa |
|---|---|---|---|
| Przestrzeń wewnętrzna: | 1*19 cali 32U | System blokady: | Zabezpieczenie przed kradzieżą trzypunktowe |
| Stopień IP: | IP65 | Kolor: | RAL7035 (dostosowany) |
| Lampa LED: | AC220V, 50 Hz, używane do oświetlenia w szafce, 1 zestaw | Instalacja: | Mocowanie podłogi |
| Podkreślić: | IP grade outdoor telecom cabinet,32U floor cabinet for telecom,telecom critical infrastructure cabinet |
||

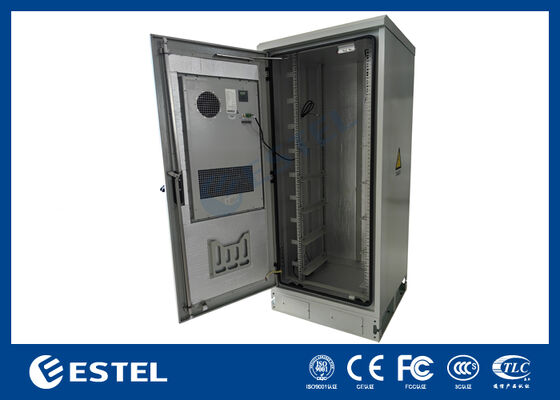

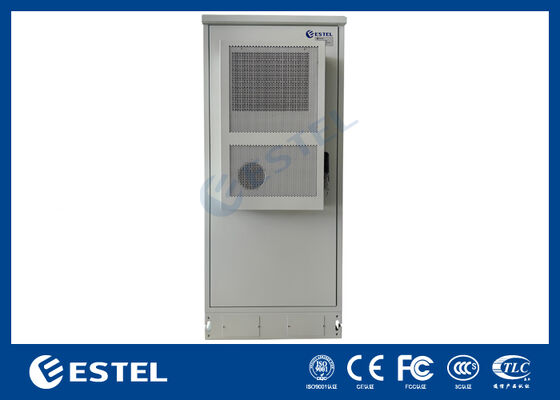

IP Grade Protected Outdoor 32U Floor Cabinet for Telecommunication Critical Infrastructure
This industrial-grade cabinet features a robust double-layer construction, designed for telecommunications, power distribution, and industrial control systems requiring high protection, heavy load capacity, and active thermal management. It supports 32U of standard 19-inch equipment and is equipped with an integrated air conditioner, making it suitable for outdoor or semi-outdoor environments.
External Dimensions (H x W x D): 1750 mm x 800 mm x 1000 mm (Customizable)
Internal Space: 19-inch, 32U
Mounting Type: Floor mounted
Structure: Double-layer design
Material (Outer Layer): 1.2 mm galvanized steel plate
Material (Inner Layer): 0.8 mm galvanized steel plate
Load-Bearing Components: 2.0 mm thickness
Insulation: 20 mm PEF (Polyethylene Foam)
Coating: Polyester powder coating
Color: RAL 7035 (Light gray)
Locking System: Anti-theft three-point locking system
Hinge Type: Inner hinge
Cable Management: Cable entry/exit from the bottom of the cabinet
Maintenance Access: Front maintenance via single front door
Type: Integrated industrial air conditioner
Power Supply: AC 220V, 50Hz
Cooling Capacity: 1500 W
Quantity: 1 set
Advantages of Outdoor 32U Floor Cabinet
Durable & Secure: The double-layer galvanized steel (1.2mm/0.8mm) with 2.0mm load-bearing parts and a three-point locking system ensures high physical security and structural integrity.
Thermal Management: The 20mm PEF insulation combined with a 1500W air conditioner allows the cabinet to maintain optimal operating temperatures in high-heat environments.
Convenient Maintenance: Front-only access design simplifies on-site maintenance and saves space.
Customizable: Overall dimensions can be tailored to specific project requirements.
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor 32U Floor Cabinet | |
| Protection Level | IP65 | ||
| External Dimension |
H1750mm×W800mm×D1000mm, With a 150mm plinth( can be customized ) |
||
| Internal Space | 1*19 inch 32U | ||
| Material |
Double-layer, with an outer layer of 1.2mm and inner layer of 0.8mm galvanized steel plate; Thickness of load-bearing components: 2.0mm
|
||
| Coating | Polyester powder coating | ||
| Color | RAL7035(customized) | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Floor installation | ||
| Cable entry | Cable-in and cable-out from the bottom of cabinet | ||
| Maintenance | One front door, maintenance from the front | ||
| Cooling Mode | Air Conditioner | 1500W, 220VAC, 50Hz, 1 set | |
| LED Lamp | AC220V,50Hz, used for illumination in the cabinet,1set | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |
