Szczegóły Produktu:
Zapłata:
|
| Wymiar: | 5U(wys.)*482mm(szer.)*350mm(gł.) | Napięcie wejściowe: | Trójfazowy 380VAC |
|---|---|---|---|
| Napięcie wyjściowe: | -48VDC (od -42 do -58VDC) | SPD: | 20ka/40ka, 8/20µs |
| Moduł prostownika: | 18 kW (maksymalnie), redundancja N+1 | Pojemność modułu: | 3000 W |
| Wydajność modułu: | ＞ 96% | Aplikacja: | Telekomunikacja, centrum danych |
| Ochrona obciążenia: | LLVD, BLVD | Port komunikacyjny: | SNMP, RS485 |
| Podkreślić: | 5U industrial telecom rectifier,AC to DC48V telecom power,remote management telecom rectifier |
||
5U Industrial Intelligent Telecom Rectifier Solution AC to DC48V with Remote Management
Product Overview
The 18kW DC48V rectifier system delivers robust and uninterrupted DC power tailored for telecommunications, data centers, and industrial operations where system availability is non-negotiable. Operating from a 380VAC three-phase input, it supplies a stable and adjustable DC output ranging from –43 VDC to –58 VDC, nominally set at –53.5 VDC. Its advanced power conversion technology achieves better than 96% efficiency across the load range, making it an optimal fit for energy-sensitive and space-constrained installations.
Hot-Swappable Modular Design for Nonstop Operation

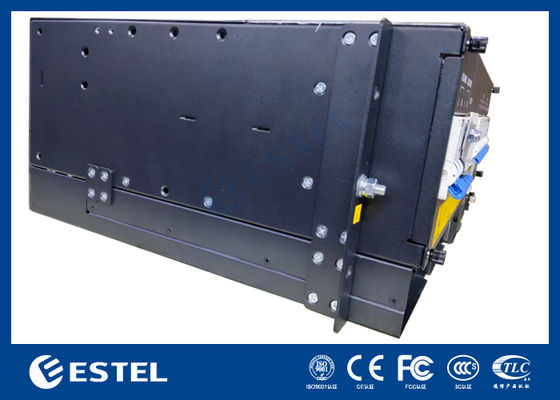

Purpose-built for service continuity, the system supports up to 6 x 3000W rectifier modules, field-replaceable without tools in an N+1 redundant configuration. Housed in a 5U-high 19-inch rack-mountable enclosure (IP20), the chassis maximizes power density while maintaining a small footprint. Each module, weighing under 2 kg, relies on forced-air cooling to sustain thermal stability under varying loads. With a power factor correction of 0.99 or higher and total harmonic current distortion kept below 5%, the system ensures clean energy conversion while minimizing harmonic feedback to the mains network. Front-side access and top-entry cabling streamline both installation and routine maintenance.
Onboard Intelligence with Flexible Load Management

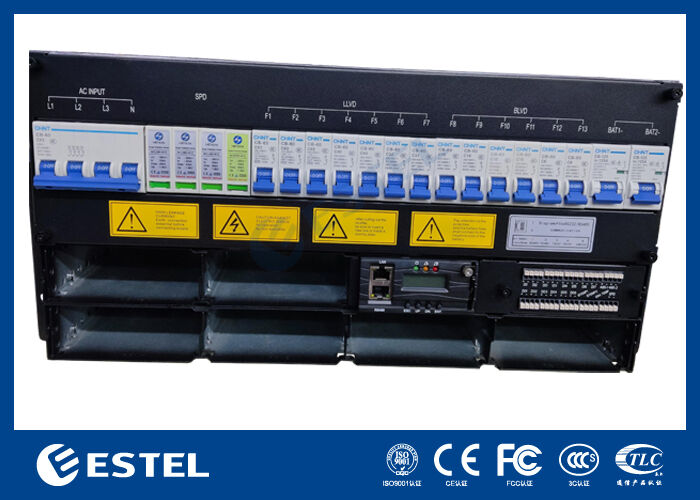

Equipped with an integrated power distribution panel, the unit supports both LLVD and BLVD schemes to enable prioritized load shedding and battery protection. A built-in intelligent controller offers full visibility and configuration authority through 3 temperature probe inputs—two dedicated to battery banks and one for ambient monitoring—alongside 7 digital input ports and 6 programmable dry-contact relay outputs for alarm escalation. For remote supervision, the system communicates via RS485 and SNMP, while the local LCD interface allows operators to adjust parameters and monitor system health in real time.
Field-Proven Resilience in Extreme Conditions
Rigorously tested for environmental endurance, the rectifier sustains full rated output across an ambient temperature range of –40°C to +65°C and relative humidity from 5% to 95%, non-condensing. It also delivers uncompromised performance at elevations up to 3000 meters above sea level. Merging compact modularity with intelligent power governance and mechanical robustness, the ET series forms a dependable DC power core for facilities that demand absolute continuity.
Specification
| Type | 18KW DC48V Rectifier System | |||
| General | Size | 482mm*350mm*5U(Width*Depth*Height) | ||
| Weight | ≤21kg (rectifiers excluded) | |||
| Cooling method | Natural cooling | |||
| Installation | 19-inch standard rack-mounted | |||
| Cabling mode | In and out from the top | |||
| Maintenance mode | From front side, support module grade change | |||
| Protection grade | IP20 | |||
| AC Input |
Voltage |
380VAC three-phase | ||
| MCB | 1 x 63A 3P+N circuit breaker | |||
| Frequency | 45Hz to 65Hz, rated value: 50Hz/60Hz | |||
| SPD | Grade C, 20KA/40KA, 8/20μs | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
|
Output capacity (Maximun)
|
18kw(6 x 3kw, supports N+1 redundancy) | |||
|
Battery breaker
|
2 x 125A 1P | |||
| LLVD | 3*63A/1P+2*40A/1P+2*32A/1P | |||
| BLVD |
2*16A/1P+2*10A/1P+2*6A/1P |
|||
| Rectifier Module | Input voltage | 85VAC to 300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176 to 300VAC) | |||
| Working temperature | -40℃~+75℃(full performance below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U height) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Model | MC2900 | ||
| Signal input port | 3 AI(2 battery temp, 1 environment) , 7 DI | |||
| Alarm output port | 6 dry contact | |||
| Communication port | 1*RS485, 1*LAN | |||
| Situation Display | LCD | |||
| Environment | Operating temperature |
-40℃ ~ +65℃ (full output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||
