| Wymiar: | 482,0 (szer.)*350,6(gł.)*4U(wys.) | Waga: | ≤18kg (bez prostowników) |
|---|---|---|---|
| Tryb chłodzenia: | Naturalne chłodzenie | Tryb instalacji: | Zainstalowane na 19-calowym stojaku lub wewnątrz szafki |
| Tryb okablowania: | Górne wejście i górne wyjście | Tryb konserwacji F: | Konserwacja z przodu, zmiana oceny modułu wspornika |
| Podkreślić: | 3~6kW telecom power system,ET48100-G5F24 power system,telecom power system with warranty |
||
Introduction

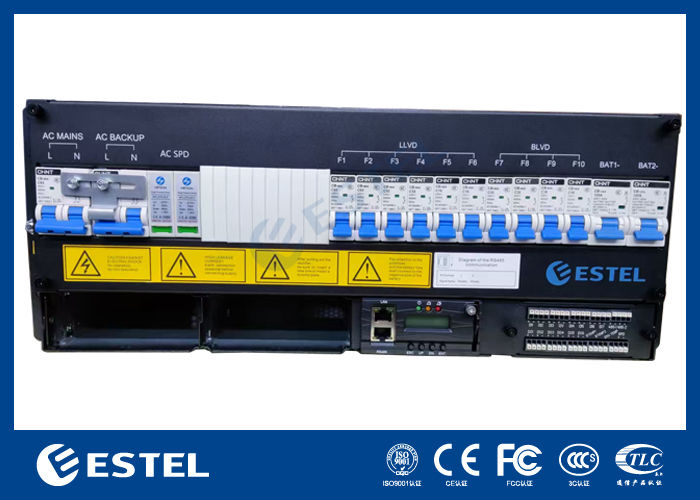

4U Sub-rack power supply, 4U height compact design to meet critical application needs of fiber and microwave transmission, access device, switch. The system's maximum current is 100A, with AC/Battery/Load MCBs. The cables are front accessing with MCB and busbar.
Key Features
Application Scenarios

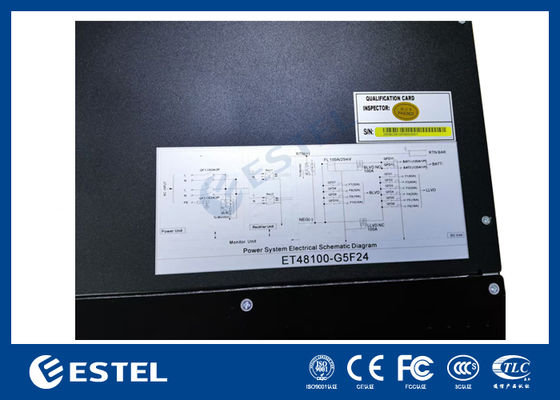

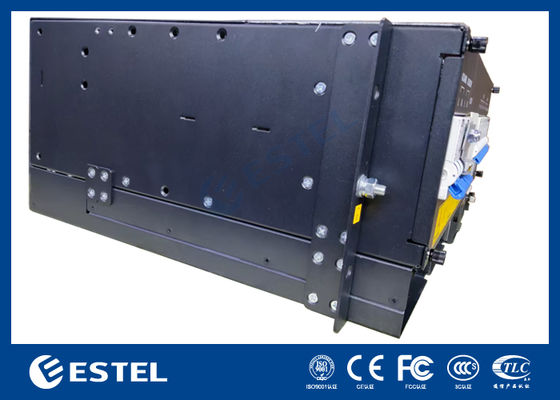

ET48100-G5F24 Specifications
| Type | 3~6kW 4U Subrack | |
|
System |
Dimension | 482.0(W)*350.6(D)*4U(H) |
| Weight | ≤18kg (without rectifiers) | |
| Cooling mode | Natural cooling | |
| Installation mode | Installed on 19-inch rack or inside the cabinet | |
| Cabling mode | Top inlet and top outlet | |
| Maintenance mode | Front maintenance, support module grade change | |
| Protection level | IP20 | |
|
AC Distribution |
Input mode | 220VAC single phase |
| Input capacity | 2×63A/2P | |
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |
| AC SPD | 20kA/40kA, 8/20μs | |
|
DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 6kW(3KW*2) | |
| Battery breakers | 2× 125A/1P | |
| Load breakers |
LLVD:2×63A/1P+2×32A/1P+2× 16A/1P BLVD:2×32A/1P+2× 16A/1P |
|
| DC SPD | 10kA/20KA, 8/20μs | |
|
Rectifier |
Input voltage | 85VAC～300VAC, rated 220VAC |
| Efficiency | >96% | |
| Rated power | 3000W(176~300VAC) | |
| Working temperature | -40℃~+75℃(fully output below 50℃) | |
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |
| Weight | ≤2kg | |
| Cooling mode | Forced cooling | |
| Power factor | ≥0.99 @220Vac 20-100% Load | |
|
Controller |
Signal input | 3 AI(2 Battery temp., 1 ambient temp.) ,7 DI |
| Alarm output | 6 dry contact | |
| Communication port | LAN, RS485, SNMP | |
| Display mode | LCD | |
|
Environment |
Operating temperature |
-40℃~+70℃ |
| Storage temperature | -40℃~+70℃ | |
| Operating humidity | 5%~95%(non-condensing) | |
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) | |
