12kW Telecom Power System with Smart Circuit breakers for Intelligent Control

Podstawowe właściwości
Miejsce pochodzenia: CHINY
Nazwa marki: ESTEL
Orzecznictwo: CE UL FCC
Numer modelu: ET7575100A-16U-12kW
Nieruchomości handlowe
Minimalna ilość zamówienia: 1 zestaw
Cena: 715-4286 usd
Warunki płatności: T/T, Western Union, Moneygram, D/P, D/A, L/C
Możliwość zaopatrzenia: 3000 zestawów miesięcznie
Tagi

system zasilania telekomunikacyjnego

System zasilania telekomunikacyjnego z energią hybrydową

System energii telekomunikacyjnej
Podsumowanie produktu
12kW Telecom Power System with Smart Circuit breakers for Intelligent Control 1. Introduction ET7575100A-16U-12kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The ...

Szczegóły Produktu

Podkreślić:

12kW telecom power system

,

telecom power system with smart circuit breakers

,

intelligent control telecom power system
Cabinet Dimension: Szer. x gł. x wys. = 750 x 750 x 1000 mm (można dostosować)
Internal Space: Standardowa szafa rack 19'', przestrzeń 16U
Material: Ocynkowana arkusz
Power Capacity: 12kW
Rectifier Module: 3 szt. 4kW
Cooling Method: Klimatyzator lub wymuszony system wentylatora
IP Grade: IP65
Packaging: Drewniana obudowa
Opis produktu



12kW Telecom Power System with Smart Circuit breakers for Intelligent Control



1. Introduction

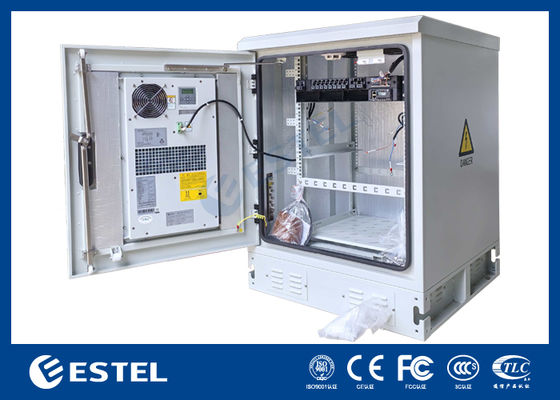

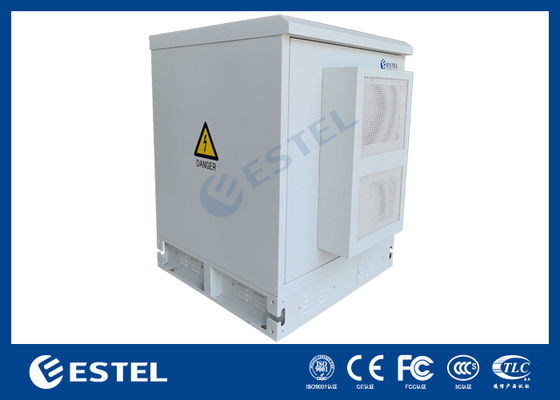

ET7575100A-16U-12kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.



2. Applications



This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.



3. Cabinet Features



  • High protection grade: IP65
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost





3. Rectifier Power System Features



  • Power system capacity: 12kW, 3 rectifier modules + 1 monitoring module;
  • Power system height: 2 rack units;
  • Rectifier module specification: 4kW
  • Monitoring module: support SNMP;
  • Power distribution:

              - LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;

              - BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;



4. Cooling System Features



Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.



5. Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET7575100A-16U-12kW
Protection Level IP65
External Dimension H 1000 mm×W 750 mm×D 750 m (Can be customized)
Internal Dimension 19 inch 16U
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one rear door
Cooling System Air conditioner 1000W
Fan Optional
Input Voltage AC220V 60Hz
Door sensor Door sensor Optional
Temper sensor Temper sensor Optional

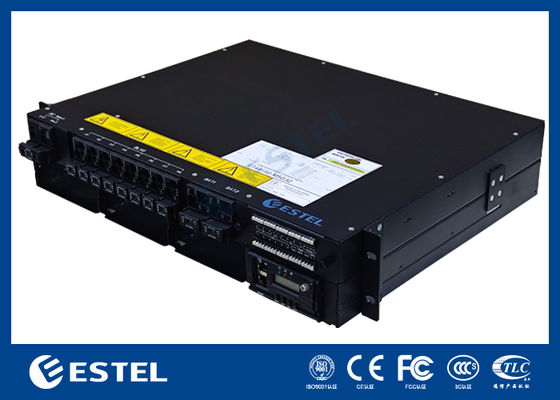

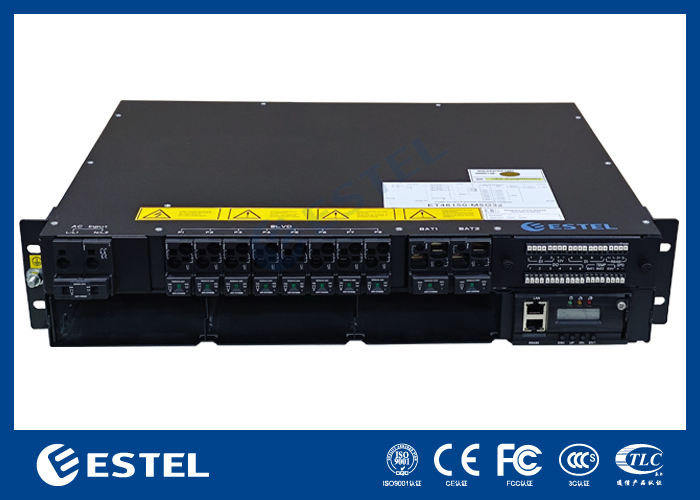

Rectifier system Rectifier system 12kW, 19" rack mount, 2U Rectifier System:
3pcs 4kW rectifier modules
1x Monitoring Controller Module, SNMP communication port
Power distribution:
LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P
BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
