Szczegóły Produktu:
Zapłata:
|
| Drzwi: | Dwa | Model: | ET9090215A-42U |
|---|---|---|---|
| Poziom IP: | IP56 | Materiał izolacyjny: | 20 mm pef |
| Wlot kablowy: | Na dole przód i tył | Zamek od drzwi: | Trzy punktowe blokada antykradzieżowa |
| Układ: | Jednorazowa ławka | Ochrona przed wnikaniem: | ip55 |
| Wejście kablowe: | Wiele punktów wejścia kabla z gumowymi przelotkami | Wejście kablowe: | na dole szafy |
| Najważniejsze informacje o produkcie: | Ochrona błyskawicy DC | PROWADZONY: | LED 2szt |
| Przestrzeń użytkownika: | Standardowy 42U 19 | Produkt: | Szafka telekomunikacyjna na zewnątrz |
| Nazwa produktu: | Szafka telekomunikacyjna na zewnątrz | Poziom ochrony: | IP55 / IP65 |
| Typ: | Szafka zewnętrzna dla BTS | Praca: | OEM Odm |
| Gwarancja: | 1 rok | Powierzchnia: | Platerowanie |
| Waga: | 240 kg | ||
| Podkreślić: | IP65 outdoor telecom cabinet,42U dual-compartment electrical cabinet,galvanized steel outdoor telecom cabinet |
||

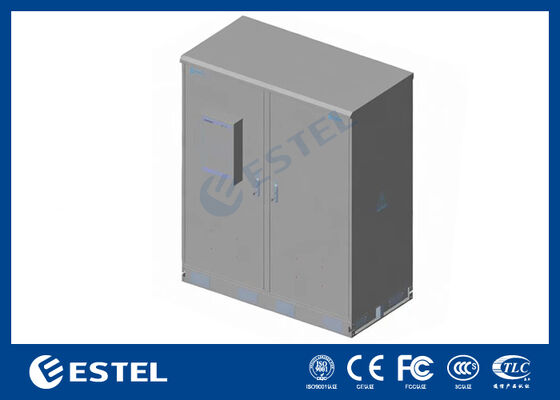

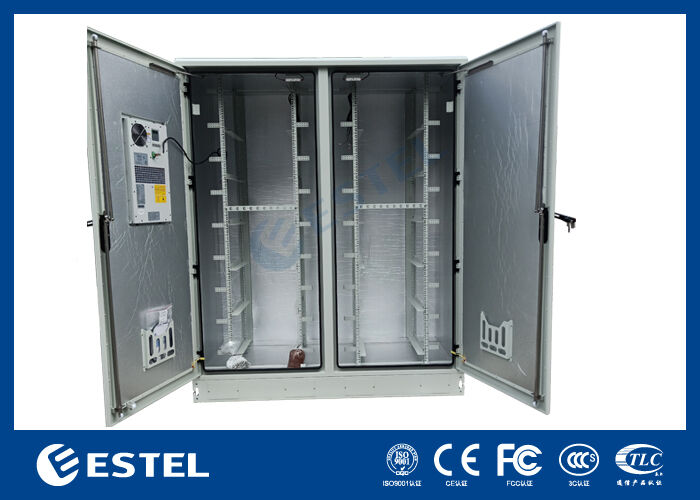

Dual Independent Compartments
The cabinet is divided into two separate 42U compartments, allowing for independent installation of different systems (e.g., power and control, or control and communication). Each compartment is accessible via its own front door.
IP65 Protection Rating
Fully sealed design with rubber gaskets ensures IP65-rated protection—dust-tight and protected against water jets. Suitable for both indoor and outdoor use in harsh environments.
Industrial-Grade Construction
Cabinet shell and doors: 1.5mm galvanized steel
Fasteners, screws, nuts, and rivets: 304 stainless steel
Surface coating: Durable RAL 7035 powder paint

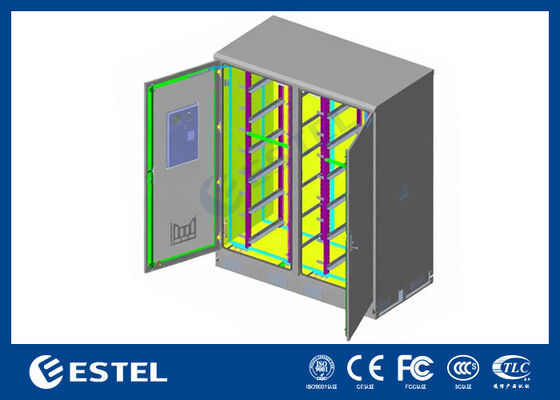

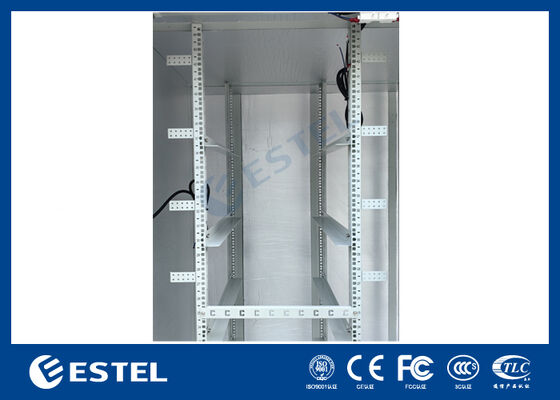

Flexible Rack System
Standard 19-inch mounting rails in both compartments (42U height) allow for modular installation of various industrial equipment such as servers, PLCs, inverters, and battery systems.
Easy Maintenance & Access
Each door opens independently with secure locking systems. Internal mounting panels, cable channels, and brackets are designed for simplified wiring and equipment servicing.
Space Optimization
By combining two compartments into a single cabinet footprint, it saves valuable floor or outdoor space.
System Isolation
The dual-chamber structure allows separation of power and control systems to reduce EMI (electromagnetic interference) and improve safety.
Enhanced Safety & Reliability
Stainless steel fasteners and IP65 ingress protection enhance structural and operational reliability in humid, dusty, or corrosive environments.
Customizable Interior
Cable entries, ventilation systems, mounting options, and internal components can be customized to fit project requirements.
Corrosion & UV Resistance
Powder-coated RAL7035 finish resists fading, scratching, and corrosion, ensuring long service life even in outdoor installations.
|
Item |
Specification |
|
Cabinet Type |
42U Dual Compartment Cabinet |
|
Material - Shell & Doors |
1.5mm galvanized steel sheet |
|
Material - Fasteners |
304 stainless steel (screws, nuts, rivets) |
|
Protection Grade |
IP65 |
|
External Color |
RAL7035 (light grey), powder-coated |
|
Mounting Type |
Floor standing, pallet base with forklift access |
|
Rack Unit Height (per side) |
42U |
|
Rack Width |
Standard 19-inch |
|
Compartment Doors |
2 independent doors with locking mechanisms |
|
Door Accessories |
Optional: Document pocket, inspection window |
|
Ventilation (optional) |
Fan tray, heat exchanger, or HVAC unit |
|
Cable Entry |
Top or bottom (customizable) |
|
Sealing Gaskets |
Industrial-grade weatherproof rubber seals |
|
Lift Points |
Optional lifting eyes for crane transport |
This cabinet is ideal for use in industrial and infrastructure environments that require separate compartments for different subsystems. Examples include:
Used to house both battery management systems and inverters in isolated sections to prevent heat crossover and enhance fire safety.
Accommodates power supplies on one side and communication/control modules on the other, minimizing signal interference.
Separates high-voltage and control equipment for safety and compliance with power utility standards.
Allows for segregated PLC and I/O device installations, simplifying troubleshooting and field maintenance.
Ideal for edge computing or remote data acquisition systems requiring high protection and modularity.
The 42U Dual Compartment Cabinet provides a rugged, IP65-rated, space-efficient enclosure solution for multi-system installations. Whether in harsh outdoor environments or high-demand industrial settings, it ensures maximum uptime, separation of functions, and long-term durability.
